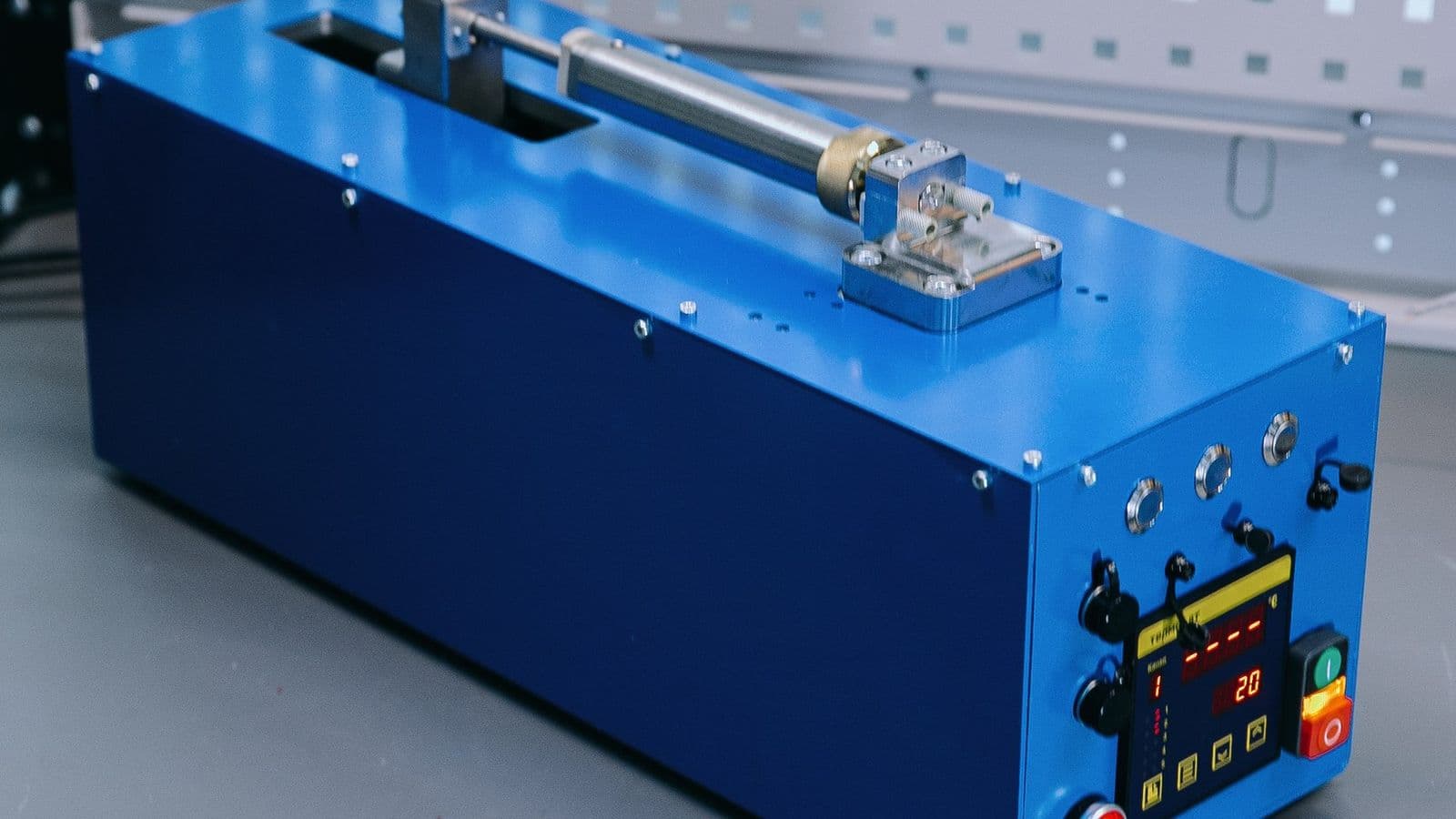

LA-Pump UHP — مضخة ضغط فائق
مضخة حقن فائقة الضغط LA-Pump UHP: توصيل بمعدلات تدفق حتى 1.5 لتر/د وضغوط تشغيل حتى 1000 بار.
السعر عند الطلب
| Maximum pressure | up to 1000 bar (15,000 psi) |
|---|---|
| Maximum flow rate | up to 1.5 L/min |
| Pressure sensor range | up to 1300 bar |
| Syringe volume | steel syringes up to 250 mL |
| Protection | safety coupling and valves |
| Configuration | high-pressure (HP) |
| Applications | microfluidics, chemistry, oil & gas |
| Lead time | about 2 months |
| Production | serial, from June 2025 |
1
نظرة عامة
LA-Pump UHP is an ultra-high-pressure syringe pump for tasks where conventional fluid delivery falls short. It provides flow from 4 nl/min to 1.5 L/min at working pressures up to 1000 bar (15,000 psi), suiting microfluidic setups, chemical synthesis and oil-and-gas research under extreme conditions.
Delivery is driven by dedicated steel syringes of up to 250 ml. The pressure circuit is monitored by a sensor rated to 1300 bar, while an integrated safety coupling and valves protect the system at the edge of its operating envelope.
